SAKAGAMI液压密封：
  *活塞杆专用密封件(packing)*

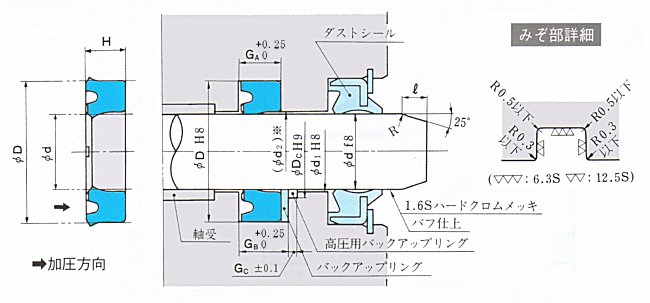

GNY-Packing
Packing / Groove Dimensions　(Unit：mm) Instruction code
d D H G A G B G C D C d 1 ? Standard(RN919) Standard backup ring High pressure backup ring
18 26 5 6 7.5 2 21 18.5 3.5 GNY- 18 TC-GNY-18 PE-GNY-18
20 28 5 6 7.5 2 23 20.5 3.5 GNY- 20 TC-GNY-20 PE-GNY-20
22 30 5 6 7.5 2 25 22.5 3.5 GNY- 22 TC-GNY-22 PE-GNY-22
25 33 5 6 7.5 2 28 25.5 3.5 GNY- 25 TC-GNY-25 PE-GNY-25
28 36 5 6 7.5 2 31 28.5 3.5 GNY- 28 TC-GNY-28 PE-GNY-28
30 40 6 7 9 2.5 34 30.5 4 GNY- 30 TC-GNY-30 PE-GNY-30
32 42 6 7 9 2.5 36 32.5 4 GNY- 32 TC-GNY-32 PE-GNY-32
35 45 6 7 9 2.5 39 35.5 4 GNY- 35 TC-GNY-35 PE-GNY-35
36 46 6 7 9 2.5 40 36.5 4 GNY- 36 TC-GNY-36 PE-GNY-36
40 50 6 7 9 2.5 44 40.5 4 GNY- 40 TC-GNY-40 PE-GNY-40
45 55 6 7 9 2.5 49 45.5 4 GNY- 45 TC-GNY-45 PE-GNY-45
50 63 8 9 11.5 3 56 50.5 5 GNY- 50 TC-GNY-50 PE-GNY-50
55 68 8 9 11.5 3 61 55.6 5 GNY- 55 TC-GNY-55 PE-GNY-55
56 69 8 9 11.5 3 62 56.6 5 GNY- 56 TC-GNY-56 PE-GNY-56
60 73 8 9 11.5 3 66 60.6 5 GNY- 60 TC-GNY-60 PE-GNY-60
63 76 8 9 11.5 3 69 63.6 5 GNY- 63 TC-GNY-63 PE-GNY-63
65 78 8 9 11.5 3 71 65.6 5 GNY- 65 TC-GNY-65 PE-GNY-65
70 85 9 10 12.5 3 76 70.6 5 GNY- 70 TC-GNY-70 PE-GNY-70
75 90 9 10 12.5 3 81 75.6 5 GNY- 75 TC-GNY-75 PE-GNY-75
80 95 9 10 12.5 3 86 80.6 5 GNY- 80 TC-GNY-80 PE-GNY-80
90 105 9 10 12.5 3 96 90.6 5 GNY- 90 TC-GNY-90 PE-GNY-90
100 120 12 13 16 3.5 107 100.6 6 GNY-100 TC-GNY-100 PE-GNY-100
110 130 12 13 16 3.5 117 110.6 6 GNY-110 TC-GNY-110 PE-GNY-110
125 145 12 13 16 3.5 132 125.7 6 GNY-125 TC-GNY-125 PE-GNY-125
140 160 12 13 16 3.5 147 140.7 6 GNY-140 TC-GNY-140 PE-GNY-140
160 180 12 13 16 3.5 167 160.7 6 GNY-160 TC-GNY-160 PE-GNY-160
180 200 12 13 16 3.5 187 180.7 6 GNY-180 TC-GNY-180 PE-GNY-180

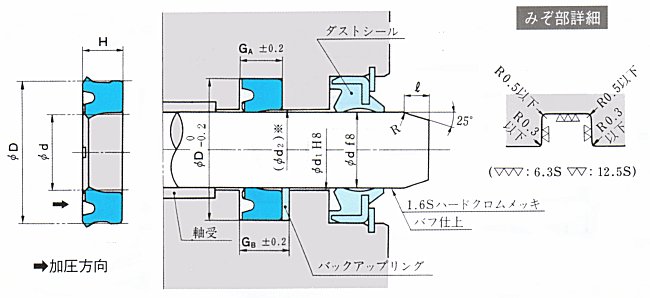

RNY-Packing
Packing / Groove Dimensions　(Unit：mm) Instruction code Compatible SKY
d D H G A G B d 1 ? Standard(RN922) Joint-use backup ring Packing
16 24 5.1 5.7 6.7 16.4 2.5 RNY- 16 TCS-24 ×16 SKY- 16
18 26 5.1 5.7 6.7 18.4 2.5 RNY- 18 TCS-26 ×18 SKY- 18
20 28 5.1 5.7 6.7 20.4 2.5 RNY- 20 TCS-28 ×20 SKY- 20
22 30 5.1 5.7 6.7 22.4 2.5 RNY- 22 TCS-30 ×22 SKY- 22
22.4 30 5.1 5.7 6.7 22.8 2.5 RNY- 22.4 TCS-30 ×22.4 SKY- 22.4
25 33 5.1 5.7 6.7 25.4 2.5 RNY- 25 TCS-33 × 25 SKY- 25
28 35.5 5.1 5.7 6.7 28.4 2.5 RNY- 28 TCS-35.5×28 SKY- 28
30 40 6.2 7 8.5 30.5 3 RNY- 30 TCS-40 × 30 SKY- 30
31.5 41.5 6.2 7 8.5 32 3 RNY- 31.5 TCS-41.5×31.5 SKY- 31.5
32 42 6.2 7 8.5 32.5 3 RNY- 32 TCS-42 × 32 SKY- 32
35 45 6.2 7 8.5 35.5 3 RNY- 35 TCS-45 ×35 SKY- 35
35.5 45 6.2 7 8.5 36 3 RNY- 35.5 TCS-45 ×35.5 SKY- 35.5
36 46 6.2 7 8.5 36.5 3 RNY- 36 TCS-46 ×36 SKY- 36
40 50 6.2 7 8.5 40.5 3 RNY- 40 TCS-50 ×40 SKY- 40
45 55 6.2 7 8.5 45.5 3 RNY- 45 TCS-55 ×45 SKY- 45
45 56 7.2 8 9.5 45.5 3 RNY- 45A TCS-56 ×45 SKY- 45A
50 60 6.2 7 8.5 50.5 3 RNY- 50 TCS-60 ×50 SKY- 50
55 65 6.2 7 8.5 55.6 3 RNY- 55 TCS-65 ×55 SKY- 55
56 66 6.2 7 8.5 56.6 3 RNY- 56 TCS-66 ×56 SKY- 56
60 70 6.2 7 8.5 60.6 3 RNY- 60 TCS-70 ×60 SKY- 60
60 71 7.2 8 9.5 60.6 3 RNY- 60A TCS-71 ×60 SKY- 60A
63 73 6.2 7 8.5 63.6 3 RNY- 63 TCS-73 ×63 SKY- 63
65 75 6.2 7 8.5 65.6 3 RNY- 65 TCS-75 ×65 SKY- 65
65 78 8.2 9 11 65.6 3.5 RNY- 65B TCS-78 ×65 ――
70 80 6.2 7 8.5 70.6 3.5 RNY- 70 TCS-80 ×70 SKY- 70
70 85 9.2 10 12 70.6 3.5 RNY- 70B TCS-85 ×70 ――
71 80 6.2 7 8.5 71.6 3.5 RNY- 71 TCS-80 ×71 SKY- 71
75 85 6.2 7 8.5 75.6 3.5 RNY- 75 TCS-85 ×75 SKY- 75
75 90 9.2 10 12 75.6 3.5 RNY- 75B TCS-90 ×75 ――
80 90 6.2 7 8.5 80.6 3.5 RNY- 80 TCS-90 ×80 SKY- 80
80 95 9.2 10 12 80.6 4 RNY- 80B TCS-95 × 80 ――
85 100 9.2 10 12 85.6 4 RNY- 85 TCS-100× 85 SKY- 85
90 105 9.2 10 12 90.6 4 RNY- 90 TCS-105× 90 SKY- 90
100 115 9.2 10 12 100.6 4 RNY-100 TCS-115×100 SKY-100
110 125 9.2 10 12 110.6 4 RNY-110 TCS-125×110 SKY-110
112 125 8.7 10 12 112.6 4 RNY-112 TCS-125×112 SKY-112, 112A
125 140 9.2 10 12 125.6 4 RNY-125 TCS-140×125 SKY-125
140 155 9.2 10 12 140.6 4 RNY-140 TCS-155×140 SKY-140
160 175 9.2 10 12 160.6 4 RNY-160 TCS-175×160 SKY-160
180 200 12.2 13 15.5 180.7 5.5 RNY-180 TCS-200×180 SKY-180

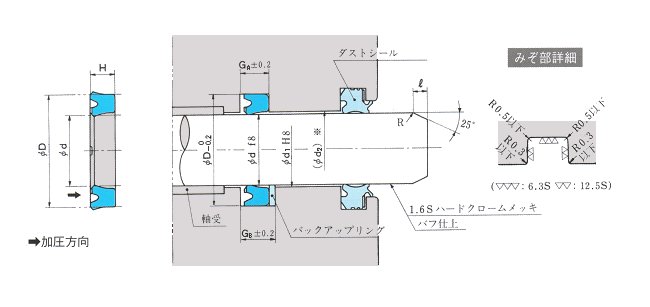

SNY-Packing
Packing / Groove Dimensions (Unit：mm) Instruction code
d D H G A G B d 1 ? Standard(RN809) Joint-use backup ring
14 22 5 5.7 6.7 14.4 2.5 ?SNY- 14 TCS-22 × 14
18 26 5 5.7 6.7 18.4 2.5 ?SNY- 18 TCS-26 × 18
20 28 5 5.7 6.7 20.4 2.5 ?SNY- 20 TCS-28 × 20
25 33 5 5.7 6.7 25.4 2.5 ?SNY- 25 TCS-33 × 25
28 35.5 5 5.7 6.7 28.4 2.5 ?SNY- 28 TCS-35.5× 28
30 40 6 7 8.5 30.5 3 ?SNY- 30 TCS-40 × 30
31.5 41.5 6 7 8.5 32 3 ?SNY- 31.5 TCS-41.5× 31.5
35 45 6 7 8.5 35.5 3 ?SNY- 35 TCS-45 × 35
35.5 45 6 7 8.5 36 3 ?SNY- 35.5 TCS-45 × 35.5
40 50 6 7 8.5 40.5 3 ?SNY- 40 TCS-50 × 40
45 55 6 7 8.5 45.5 3 ?SNY- 45 TCS-55 × 45
45 56 7 8 9.5 45.5 3 ?SNY- 45A TCS-56 × 45
50 60 6 7 8.5 50.5 3 ?SNY- 50 TCS-60 × 50
55 65 6 7 8.5 55.6 3 ?SNY- 55 TCS-65 × 55
56 66 6 7 8.5 56.6 3 ?SNY- 56 TCS-66 × 56
60 70 6 7 8.5 60.6 3 ?SNY- 60 TCS-70 × 60
60 71 7 8 9.5 60.6 3 ?SNY- 60A TCS-71 × 60
63 73 6 7 8.5 63.6 3 ?SNY- 63 TCS-73 × 63
65 75 6 7 8.5 65.6 3 ?SNY- 65 TCS-75 × 65
70 85 9 10 12 70.6 4 ?SNY- 70A TCS-85 × 70
70 80 6 7 8.5 70.6 4 ?SNY- 70C TCS-80 × 70
75 85 6 7 8.5 75.6 4 ?SNY- 75 TCS-85 × 75
75 90 9 10 12 75.6 4 ?SNY- 75A TCS-90 × 75
80 95 9 10 12 80.6 4 ?SNY- 80A TCS-95 × 80
80 90 6 7 8.5 80.6 4 ?SNY- 80C TCS-90 × 80
85 100 9 10 12 85.6 4 ?SNY- 85 TCS-100 × 85
90 105 9 10 12 90.6 4 ?SNY- 90 TCS-105 × 90
95 110 9 10 12 95.6 4 ?SNY- 95 TCS-110 × 95
100 115 9 10 12 100.6 4 ?SNY-100 TCS-115 ×100
105 120 9 10 12 105.6 4 ?SNY-105 TCS-120 ×105
110 125 9 10 12 110.6 4 ?SNY-110 TCS-125 ×110
115 130 8.5 9.5 11.5 115.6 4 ?SNY-115B TCS-130 ×115
125 140 9 10 12 125.7 4 ?SNY-125 TCS-140 ×125
140 155 9 10 12 140.7 4 ?SNY-140 TCS-155 ×140
150 165 9 10 12 150.7 4 ?SNY-150 TCS-165 ×150
160 175 9 10 12 160.7 4 ?SNY-160 TCS-175 ×160
180 200 12 13 15.5 180.7 5.5 ?SNY-180 TCS-200 ×180

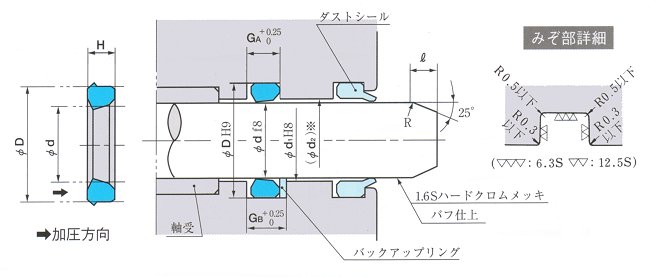

PS-Packing
Packing / Groove Dimensions (Unit：mm) Instruction code
PENTA Seal Joint-use backup ring(PT101)
d D H G A G B d 1 ? Standard(RN 906) For heat resistance(RF 905) Bias-Cut Type Endless Type
3 6 2 2.5 3.9 3.2 1.5 PS-3 T2 P-3 T3 P-3
4 7 2 2.5 3.9 4.2 1.5 PS-4 T2 P-4 T3 P-4
5 8 2 2.5 3.9 5.2 1.5 PS-5 T2 P-5 T3 P-5
6 9 2 2.5 3.9 6.2 1.5 PS-6 T2 P-6 T3 P-6
7 10 2 2.5 3.9 7.2 1.5 PS-7 T2 P-7 T3 P-7
8 11 2 2.5 3.9 8.2 1.5 PS-8 T2 P-8 T3 P-8
9 12 2 2.5 3.9 9.2 1.5 PS-9 T2 P-9 T3 P-9
10 13 2 2.5 3.9 10.2 1.5 PS-10 T2 P-10 T3 P-10
10 14 2.9 3.2 4.4 10.3 1.5 PS-10A T2 P-10A T3 P-10A
11.2 15.2 2.9 3.2 4.4 11.5 1.5 PS-11.2 T2 P-11.2 T3 P-11.2
12 16 2.9 3.2 4.4 12.3 1.5 PS-12 T2 P-12 T3 P-12
12.5 16.5 2.9 3.2 4.4 12.8 1.5 PS-12.5 T2 P-12.5 T3 P-12.5
14 18 2.9 3.2 4.4 14.3 1.5 PS-14 T2 P-14 T3 P-14
15 19 2.9 3.2 4.4 15.3 1.5 PS-15 PS-15F T2 P-15 T3 P-15
16 20 2.9 3.2 4.4 16.3 1.5 PS-16 T2 P-16 T3 P-16
18 22 2.9 3.2 4.4 18.3 1.5 PS-18 T2 P-18 T3 P-18
20 24 2.9 3.2 4.4 20.3 1.5 PS-20 T2 P-20 T3 P-20
22 26 2.9 3.2 4.4 22.3 1.5 PS-22 T2 P-22 T3 P-22
22 28 4.3 4.7 6 22.3 3 PS-22A T2 P-22A T3 P-22A
22.4 28.4 4.3 4.7 6 22.7 3 PS-22.4 T2 P-22.4 T3 P-22.4
24 30 4.3 4.7 6 24.3 3 PS-24 T2 P-24 T3 P-24
25 31 4.3 4.7 6 25.3 3 PS-25 PS-25F T2 P-25 T3 P-25
26 32 4.3 4.7 6 26.3 3 PS-26 T2 P-26 T3 P-26
28 34 4.3 4.7 6 28.3 3 PS-28 PS-28F T2 P-28 T3 P-28
30 36 4.3 4.7 6 30.3 3 PS-30 T2 P-30 T3 P-30
31 37 4.3 4.7 6 31.3 3 PS-31 T2 P-31 T3 P-31
31.5 37.5 4.3 4.7 6 31.8 3 PS-31.5 T2 P-31.5 T3 P-31.5
32 38 4.3 4.7 6 32.3 3 PS-32 PS-32F T2 P-32 T3 P-32
34 40 4.3 4.7 6 34.3 3 PS-34 T2 P-34 T3 P-34
35 41 4.3 4.7 6 35.3 3 PS-35 T2 P-35 T3 P-35
35.5 41.5 4.3 4.7 6 35.8 3 PS-35.5 PS-35.5F T2 P-35.5 T3 P-35.5
36 42 4.3 4.7 6 36.3 3 PS-36 T2 P-36 T3 P-36
38 44 4.3 4.7 6 38.3 3 PS-38 T2 P-38 T3 P-38
40 46 4.3 4.7 6 40.3 3 PS-40 PS-40F T2 P-40 T3 P-40
41 47 4.3 4.7 6 41.3 3 PS-41 T2 P-41 T3 P-41
42 48 4.3 4.7 6 42.3 3 PS-42 T2 P-42 T3 P-42
44 50 4.3 4.7 6 44.3 3 PS-44 T2 P-44 T3 P-44
45 51 4.3 4.7 6 45.3 3 PS-45 PS-45F T2 P-45 T3 P-45
46 52 4.3 4.7 6 46.3 3 PS-46 T2 P-46 T3 P-46
48 54 4.3 4.7 6 48.3 3 PS-48 PS-48F T2 P-48 T3 P-48
48 58 6.9 7.5 9 48.4 4 PS-48A T2 P-48A T3 P-48A
50 56 4.3 4.7 6 50.3 3 PS-50 T2 P-50 T3 P-50
50 60 6.9 7.5 9 50.4 4 PS-50A T2 P-50A T3 P-50A
52 62 6.9 7.5 9 52.4 4 PS-52 T2 P-52 T3 P-52
53 63 6.9 7.5 9 53.4 4 PS-53 T2 P-53 T3 P-53
55 65 6.9 7.5 9 55.4 4 PS-55 T2 P-55 T3 P-55
56 66 6.9 7.5 9 56.4 4 PS-56 T2 P-56 T3 P-56
58 68 6.9 7.5 9 58.4 4 PS-58 T2 P-58 T3 P-58
60 70 6.9 7.5 9 60.4 4 PS-60 T2 P-60 T3 P-60
62 72 6.9 7.5 9 62.4 4 PS-62 T2 P-62 T3 P-62
63 73 6.9 7.5 9 63.4 4 PS-63 T2 P-63 T3 P-63
65 75 6.9 7.5 9 65.4 4 PS-65 T2 P-65 T3 P-65
67 77 6.9 7.5 9 67.4 4 PS-67 T2 P-67 T3 P-67
70 80 6.9 7.5 9 70.4 4 PS-70 T2 P-70 T3 P-70
71 81 6.9 7.5 9 71.4 4 PS-71 T2 P-71 T3 P-71
75 85 6.9 7.5 9 75.4 4 PS-75 T2 P-75 T3 P-75
80 90 6.9 7.5 9 80.4 4 PS-80 PS-80F T2 P-80 T3 P-80
85 95 6.9 7.5 9 85.4 4 PS-85 T2 P-85 T3 P-85
90 100 6.9 7.5 9 90.4 4 PS-90 PS-90F T2 P-90 T3 P-90
95 105 6.9 7.5 9 95.4 4 PS-95 T2 P-95 T3 P-95
100 110 6.9 7.5 9 100.4 4 PS-100 PS-100F T2 P-100 T3 P-100

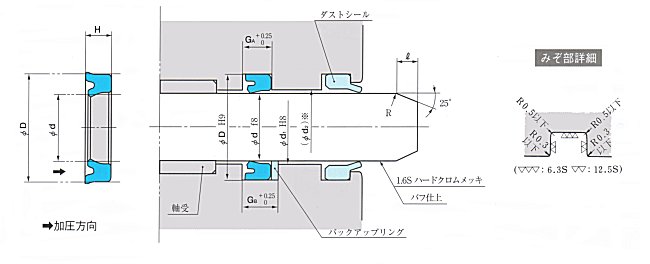

NMY-Packing
Packing / Groove Dimensions (Unit：mm) Instruction code
NMY Packing Joint-use backup ring
d D H G A G B d 1 ? Standard(RN 906) Bias-Cut Type Endless Type
3 6 2.1 2.5 3.9 3.2 1.5 NMY- 3 T2 P-3 T3 P-3
4 7 2.1 2.5 3.9 4.2 1.5 NMY- 4 T2 P-4 T3 P-4
5 8 2.1 2.5 3.9 5.2 1.5 NMY- 5 T2 P-5 T3 P-5
6 9 2.1 2.5 3.9 6.2 1.5 NMY- 6 T2 P-6 T3 P-6
7 10 2.1 2.5 3.9 7.2 1.5 NMY- 7 T2 P-7 T3 P-7
8 11 2.1 2.5 3.9 8.2 1.5 NMY- 8 T2 P-8 T3 P-8
9 12 2.1 2.5 3.9 9.2 1.5 NMY- 9 T2 P-9 T3 P-9
10 13 2.1 2.5 3.9 10.2 1.5 NMY-10 T2 P-10 T3 P-10
10 14 2.8 3.2 4.4 10.3 1.5 NMY-10A T2 P-10A T3 P-10A
12 16 2.8 3.2 4.4 12.3 1.5 NMY-12 T2 P-12 T3 P-12
14 18 2.8 3.2 4.4 14.3 1.5 NMY-14 T2 P-14 T3 P-14
15 19 2.8 3.2 4.4 15.3 1.5 NMY-15 T2 P-15 T3 P-15
16 20 2.8 3.2 4.4 16.3 1.5 NMY-16 T2 P-16 T3 P-16
18 22 2.8 3.2 4.4 18.3 1.5 NMY-18 T2 P-18 T3 P-18
20 24 2.8 3.2 4.4 20.3 1.5 NMY-20 T2 P-20 T3 P-20
25 31 4.2 4.7 6 25.3 3 NMY-25 T2 P-25 T3 P-25
30 36 4.2 4.7 6 30.3 3 NMY-30 T2 P-30 T3 P-30

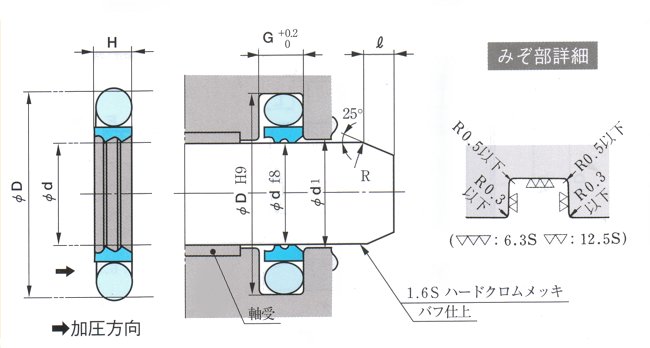

SMJ-Packing
Packing / Groove Dimensions (Unit：mm) Instruction code
d D H G Maximum d1 ? Standard(PT 154)
( 21MPa and less) ( 35MPa and less)
18 25.3 3 3.2 18.6 18.3 1.5 SMJ-18
20 30.7 4 4.2 20.6 20.3 2 SMJ-20
22 32.7 4 4.2 22.6 22.3 2 SMJ-22
25 35.7 4 4.2 25.6 25.3 2 SMJ-25
28 38.7 4 4.2 28.6 28.3 2 SMJ-28
30 40.7 4 4.2 30.6 30.3 2 SMJ-30
35 45.7 4 4.2 35.6 35.3 2 SMJ-35
36 46.7 4 4.2 36.6 36.3 2 SMJ-36
40 55.1 6 6.3 40.6 40.3 3 SMJ-40
45 60.1 6 6.3 45.6 45.3 3 SMJ-45
50 65.1 6 6.3 50.6 50.3 3 SMJ-50
55 70.1 6 6.3 55.6 55.3 3 SMJ-55
56 71.1 6 6.3 56.6 56.3 3 SMJ-56
60 75.1 6 6.3 60.6 60.3 3 SMJ-60
65 80.1 6 6.3 65.6 65.3 3 SMJ-65
70 85.1 6 6.3 70.6 70.3 3 SMJ-70
75 90.1 6 6.3 75.6 75.3 3 SMJ-75
80 95.1 6 6.3 80.6 80.3 3 SMJ-80
85 100.1 6 6.3 85.6 85.3 3 SMJ-85
90 105.1 6 6.3 90.6 90.3 3 SMJ-90
100 115.1 6 6.3 100.6 100.3 3 SMJ-100
125 140.1 6 6.3 125.6 125.3 3 SMJ-125
140 155.1 6 6.3 140.6 140.3 3 SMJ-140

*活塞、活塞杆两用密封件(packing)*

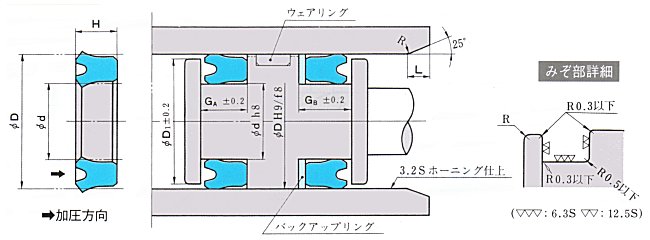

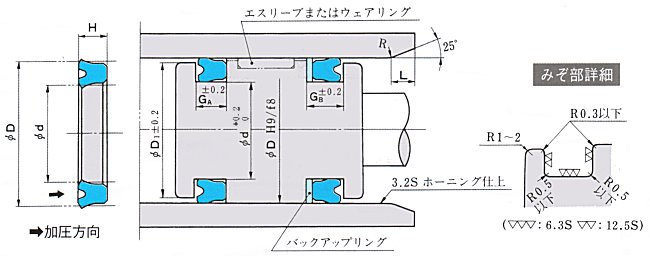

SKY-Packing
Packing / Groove Dimensions (Unit：mm) Instruction code
SKY Packing Joint use
d D H G A G B D 1 d 1 L ? Standard(RN 906) For heat resistance(RF 905)(RF 907) For cold resistance(RN 903) Backup Ring
10 18 5 5.7 6.7 17 10.4 3 1.5 SKY-0010001N906 TBC-0010007T111
12 20 5 5.7 6.7 19 12.4 3 1.5 SKY-0012001N906 TBC-0012003T111
12.5 20 5 5.7 6.7 19 12.9 3 1.5 SKY -12.5 TCS-20 × 12.5
14 22 5 5.7 6.7 21 14.4 3 1.5 SKY- 14 SKY - 14F TCS-22 × 14
16 24 5 5.7 6.7 23 16.4 3 1.5 SKY- 16 SKY- 16F TCS-24 × 16　
17 25 5 5.7 6.7 24 17.4 3 1.5 SKY-0017001N906 TCS-25 × 17
18 26 5 5.7 6.7 25 18.4 3 1.5 SKY- 18 SKY- 18F TCS-26 × 18
20 28 5 5.7 6.7 27 20.4 3 1.5 SKY- 20 SKY- 20F SKY-20N TCS-28 × 20
20 30 6 7 8.5 29 20.4 3 1.5 SKY-0020001N906 TBC-0020006T111
22 30 5 5.7 6.7 29 22.4 3 1.5 SKY- 22 SKY- 22F TCS-30 × 22　
22.4 30 5 5.7 6.7 29 22.8 3 1.5 SKY- 22.4 SKY- 22.4F TCS-30 × 22.4
23.5 31.5 5 5.7 6.7 30.5 23.9 3 1.5 SKY- 23.5 SKY- 23.5F TCS-31.5× 23.5
24 32 5 5.7 6.7 31 24.4 3 1.5 SKY-0024002N906 TCS-32 × 24
25 33 5 5.7 6.7 32 25.4 3 1.5 SKY- 25 SKY- 25F SKY-25N TCS-33 × 25
26 34 5 5.7 6.7 33 26.4 3 1.5 SKY-0026001N906 TC-Packing instruction code　
27 35 5 5.7 6.7 34 27.4 3 1.5 SKY-0027001N906 TCS-35 × 27
28 35.5 5 5.7 6.7 34.5 28.4 3 1.5 SKY- 28 SKY- 28F SKY-28N TCS-35.5× 28
28 36 5 5.7 6.7 35 28.4 3 1.5 SKY- 28A TCS-36 × 28
30 38 5 5.7 6.7 37 30.5 3.5 3 SKY-0030001N906 TBC-0030005T111
30 40 6 7 8.5 39 30.5 3.5 3 SKY- 30 SKY- 30F SKY-30N 　 TCS-40 × 30　
31.5 41.5 6 7 8.5 40.5 32 3.5 3 SKY- 31.5 SKY- 31.5F TCS-41.5× 31.5
32 42 6 7 8.5 41 32.5 3.5 3 SKY- 32 TCS-42 × 32
35 45 6 7 8.5 44 35.5 3.5 3 SKY- 35 SKY- 35F SKY-35N TCS-45 × 35
35.5 45 6 7 8.5 44 36 3.5 3 SKY- 35.5 SKY- 35.5F SKY-35.5N TCS-45 × 35.5
35.5 45.5 6 7 8.5 44.5 36 3.5 3 SKY- 35.5A TCS-45.5× 35.5　
36 46 6 7 8.5 45 36.5 3.5 3 SKY- 36 SKY- 36F TCS-46 × 36
38 48 6 7 8.5 47 38.5 3.5 3 SKY -0038001N906 TBC-0038003T111
40 50 6 7 8.5 49 40.5 3.5 3 SKY- 40 SKY- 40F SKY-40N TCS-50 × 40
45 55 6 7 8.5 54 45.5 3.5 3 SKY- 45 SKY- 45F SKY-45N TCS-55× 45
45 56 7 8 9.5 55 45.5 3.5 3 SKY- 45A SKY- 45AF SKY-45AN TCS-56× 45
50 60 6 7 8.5 59 50.5 3.5 3 SKY- 50 SKY- 50F SKY-50N TCS-60× 50
53 63 6 7 8.5 62 53.6 3.5 3 SKY- 53 SKY- 53F TCS-63× 53
55 65 6 7 8.5 64 55.6 3.5 3 SKY- 55 SKY- 55F　 SKY-55N 　 TCS-65×55　
56 66 6 7 8.5 65 56.6 3.5 3 SKY- 56 SKY- 56F TCS-66× 56
58 68 6 7 8.5 67 58.6 3.5 3 SKY -0058001N906 TBC-0058004T111
60 70 6 7 8.5 69 60.6 3.5 3 SKY- 60 SKY- 60F SKY-60N TCS-70× 60
60 71 7 8 9.5 70 60.6 3.5 3 SKY- 60A SKY- 60AF TCS-71× 60
61 71 6 7 8.5 70 61.6 3.5 3 SKY -0061001N906 TC-Packing instruction code
63 73 6 7 8.5 72 63.6 3.5 3 SKY- 63 SKY- 63F SKY-63N TCS-73× 63
65 75 6 7 8.5 74 65.6 3.5 3 SKY- 65 SKY- 65F SKY-65N TCS-75× 65
67 77 6 7 8.5 76 67.6 3.5 3 SKY- 67 SKY- 67F TCS-77× 67
70 80 6 7 8.5 79 70.6 3.5 3 SKY- 70 SKY- 70F SKY-70N TCS-80× 70
71 80 6 7 8.5 79 71.6 3.5 3 SKY- 71 SKY- 71F TCS-80× 71
75 85 6 7 8.5 84 75.6 3.5 3 SKY- 75 SKY- 75F SKY-75N TCS-85× 75
80 90 6 7 8.5 89 80.6 3.5 3 SKY- 80 SKY- 80F SKY-80N TCS-90× 80
85 95 6 7 8.5 94 85.6 3.5 3 SKY -0085002N906 TBC-0085001T111
85 100 9 10 12 98 85.6 4 4 SKY- 85 SKY- 85F SKY-85N TCS-100× 85
86 100 8.5 9.5 11.5 98 86.6 4 4 SKY- 86 SKY - 86F　 TCS-100× 86　
89 104 9 10 12 102 89.6 4 4 SKY -0089001N906 TBC-0089001T111
90 100 6 7 8.5 99 90.6 4 4 SKY -0090001N906 TBC-0090013T111
90 105 9 10 12 103 90.6 4 4 SKY- 90 SKY- 90F SKY-90N TCS-105× 90
95 110 9 10 12 108 95.6 4 4 SKY- 95 SKY- 95F TCS-110× 95
96 111 9 10 12 109 96.6 4 4 SKY -0096001N906 TBC-0096001T111　
98 112 8.5 9.5 11.5 110 98.6 4 4 SKY- 98 SKY- 98F TCS-112× 98
100 115 9 10 12 113 100.6 4 4 SKY-100 SKY-100F SKY-100N TCS-115× 100
105 120 9 10 12 118 105.6 4 4 SKY -0105002N906 TBC-0105001T111
106 120 8.5 9.5 11.5 118 106.6 4 4 SKY-106 SKY-106F SKY-106N TCS-120× 106
110 125 9 10 12 123 110.6 4 4 SKY -0110003N906 TBC-0110001T111
112 125 8.5 9.5 11.5 123 112.6 4 4 SKY-112 SKY-112F TCS-125× 112
112 125 9 10 12 123 112.6 4 4 SKY-112A SKY-112AF TCS-125× 112
115 130 8.5 9.5 11.5 128 115.6 4 4 SKY -0115002N906 SKY-0115001N903 TBC-0115002T111
118 132 8.5 9.5 11.5 130 118.6 4 4 SKY-118 SKY-118F SKY-118N TCS-132× 118
119 133 8.5 9.5 11.5 131 119.6 4 4 SKY -0119001N906 TBC-0119001T111
120 135 9 10 12 133 120.6 4 4 SKY -0120002N906 TBC-0120001T111
125 140 9 10 12 138 125.6 4 4 SKY-125 SKY-125F SKY-125N TCS-140× 125
130 145 9 10 12 143 130.6 4 4 SKY -0130001N906 TBC-0130001T111
132 145 8.5 9.5 11.5 143 132.6 4 4 SKY-132 SKY-132F TCS-145× 132
136 150 8.5 9.5 11.5 148 136.6 4 4 SKY-136 SKY-136F TCS-150× 136
140 155 9 10 12 153 140.6 4 4 SKY-140 SKY-140F TCS-155× 140
145 160 9 10 12 158 145.6 4 4 SKY-145 SKY-145F SKY-145N TCS-160× 145
150 165 9 10 12 163 150.6 4 4 SKY-150 SKY-150F TCS-165× 150
155 170 9 10 12 168 155.6 4 4 SKY-155 SKY-155F TCS-170× 155
160 175 9 10 12 173 160.6 4 4 SKY-160 SKY-160F TCS-175× 160
165 180 9 10 12 178 165.6 4 4 SKY-165 SKY-165F TCS-180× 165
170 185 9 10 12 183 170.6 4 4 SKY -0170001N906 TBC-0170001T111
175 190 9 10 12 188 175.6 4 4 SKY-175 SKY-175F TCS-190× 175
180 200 12 13 15.5 198 180.8 5 5 SKY-180 SKY-180F TCS-200× 180
185 205 12 13 15.5 203 185.8 5 5 SKY -0185001N906 TBC-0185001T111
190 210 12 13 15.5 208 190.8 5 5 SKY -0190003N906 SKY -0190001F905 TBC-0190004T111
195 215 12 13 15.5 213 195.8 5 5 SKY -0195001N906 TBC-0195006T111
200 220 12 13 15.5 218 200.8 5 5 SKY-200 SKY-200F TCS-220× 200
204 224 12 13 15.5 222 204.8 5 5 SKY-204 SKY-204F TCS-224× 204
210 230 12 13 15.5 228 210.8 5 5 SKY -0210002N906 SKY -0210001F905 TBC-0210004T111
215 235 12 13 15.5 233 215.8 5 5 SKY -0215001N906 TC-Packing instruction code
220 240 12 13 15.5 238 220.8 5 5 SKY -0220001N906 TBC-0220003T111
224 244 12 13 15.5 242 224.8 5 5 SKY-224 SKY-224F TCS-244× 224
230 250 12 13 15.5 248 230.8 5 5 SKY-230 SKY-230F TCS-250× 230
235 255 12 13 15.5 253 235.8 5 5 SKY -0235001N906 TBC-0235001T111
237 257 12 13 15.5 255 237.8 5 5 SKY -0237001N906 TC-Packing instruction code
240 260 12 13 15.5 258 240.8 5 5 SKY -0240003N906 SKY -0240001F905 TBC-0240001T111
245 265 12 13 15.5 263 245.8 5 5 SKY -0245001N906 TBC-0245004T111
250 270 12 13 15.5 268 250.8 5 5 SKY-250 SKY-250F TCS-270× 250
260 280 14 15 18 278 260.8 5 5 SKY -260 SKY -260F TCS-280× 260
280 300 14 15 18 298 280.8 5 5 SKY -280 SKY -280F TCS-300× 280
290 310 14 15 18 308 290.8 5 5 SKY -0290001N906 TBC-0290001T111
295 315 14 15 18 313 295.8 5 5 SKY -295 SKY -295F TCS-315× 295
300 320 12 13 16 318 300.8 5 5 SKY -0300003N906 TBC-0300003T111
310 330 14 15 18 328 311 5 5 SKY -0310001N906 TBC-0310002T111
315 335 14 15 18 333 316 5 5 SKY -315 TCS-335× 315
335 355 14 15 18 353 336 5 5 SKY -335 TCS-355× 335
355 375 14 15 18 373 356 5 5 SKY -355 TCS-375× 355
380 400 14 15 18 398 381 5 5 SKY -380 SKY -380F TCS-400× 380
400 420 14 15 18 418 401 5 5 SKY -400 TCS-420× 400
430 450 14 15 18 448 431 5 5 SKY -430 TCS-450× 430
450 470 14 15 18 468 451 5 5 SKY -450 TCS-470× 450
480 500 14 15 18 498 481 5 5 SKY -480 TCS-500× 480
500 525 17 18 21 522 501 5 5 SKY -0500001N906 TBC-0500002T111
540 560 14 15 18 558 541 5 5 SKY -0540001N906 TBC-0540001T111
550 570 13 14 17 568 551 5 5 SKY -0550001N906 TBC-0550001T111
610 630 14 15 18 628 611 5 5 SKY -0610001N906 TBC-0610001T111
630 655 17 18 21 652 631 5 5 SKY -0630001N906 TBC-0630001T111
660 690 18 19 22 687 661 5 5 SKY -0660001N906 TC-Packing instruction code
770 800 18 19 22 797 771 5 5 SKY -0770001N906 TC-Packing instruction code
KY-Packing
Packing / Groove Dimensions (Unit：mm) Instruction code
KY Packing Joint use
d D H G A G B D 1 d 1 L ? Standard(RN 906) For heat resistance(RF 905)(RF 907) For cold resistance(RN 903) Backup Ring
6.3 16.3 7.5 8.5 10.5 15.3 6.7 3 3 KY -6.3 KY-6.3F TE-KY- 6.3
7.1 17.1 7.5 8.5 10.5 16.1 7.5 3 3 KY -7.1 TE-KY- 7.1
8 18 7.5 8.5 10.5 17 8.4 3 3 KY -8 TE-KY- 8
9 19 7.5 8.5 10.5 18 9.4 3 3 KY -9 TE-KY- 9
10 20 7.5 8.5 10.5 19 10.4 3 3 KY -10 KY-10F TE-KY-10
11.2 21.2 7.5 8.5 10.5 20.2 11.6 3 3 KY -11.2 TE-KY-11.2
12.5 22.5 7.5 8.5 10.5 21.5 12.9 3 3 KY -12.5 KY-12.5F TE-KY-12.5
14 24 7.5 8.5 10.5 23 14.4 3 3 KY -14 TE-KY-14
15 25 6.5 7.5 9.5 24 15.4 3 3 KKY-0015001N906 TE-Packing instruction code
15 28 10 11 13.5 27 15.4 3 3 KY -15 TE-KY-15
16 26 7.5 8.5 10.5 25 16.4 3 3 KY -16 KY-16F TE-KY-16
18 28 8 9 11 27 18.4 3 3 KKY-0018001N906 TE-Packing instruction code
18 31 10 11 13.5 30 18.4 3 3 KY -18 TE-KY-18
18.5 31.5 10 11 13.5 30.5 18.9 3 3 KY -18.5 TE-KY-18.5
20 33 10 11 13.5 32 20.4 3 3 KY -20 KY-20F TE-KY-20
20 35 9.5 10.5 13 34 20.4 3 3 KKY-0020003N906 TE-Packing instruction code
22 35 8 9 11.5 34 22.4 3 3 KKY-0022002N906 TE-KY-22
22 35 10 11 13.5 34 22.4 3 3 KY -22 TE-KY-22
22.4 35.4 10 11 13.5 34.4 22.8 3 3 KY -22.4 KY-22.4F TE-KY-22.4
25 35 8 9 11 34 25.4 3 3 KKY-0025002N906 KKY-0025001F905 TE-Packing instruction code
25 38 10 11 13.5 37 25.4 3 3 KY -25 TE-KY-25
27 40 10 11 13.5 39 27.4 3 3 KY -27 TE-KY-27
28 40 10 11 13.5 39 28.4 3 3 KKY-0028001N906 TE-Packing instruction code
28 41 10 11 13.5 40 28.4 3 3 KY -28 KY-28F TE-KY-28
30 43 10 11 13.5 42 30.5 3 3 KY -30 KY-30F KY-30N TE-KY-30
30 45 10 11 14 44 30.5 3 3 KKY-0030003N906 TBE-0030006T111
31.5 44.5 10 11 13.5 43.5 32 3 3 KY -31.5 KY-31.5F TE-KY-31.5
32 45 10 11 13.5 44 32.5 3 3 KY -32 TE-KY-32
34 50 12 13 16 48 34.5 3.5 3.5 KY -34 KY-34F TE-KY-34
35 50 10 11 14 48 35.5 3.5 3.5 KKY-0035003N906 TE-KY-35
35 50 12 13 16 48 35.5 3.5 3.5 KY -35 KY-35N TE-KY-35
35 51 12 13 16 49 35.5 3.5 3.5 KY -35A TE-KY-35A
35.5 51.5 12 13 16 49.5 36 3.5 3.5 KY -35.5 KY-35.5F 　 TE-KY-35.5 　
36 52 12 13 16 50 36.5 3.5 3.5 KKY-0036001N906 TBE-0036002T111
40 55 10 11 14 53 40.5 3.5 3.5 KKY-0040006N906 TE-Packing instruction code
40 56 12 13 16 54 40.5 3.5 3.5 KY -40 KY-40F TE-KY-40
40 60 12 13 16 58 40.5 3.5 3.5 KKY-0040003N906 TBE-0040004T111
44 60 12 13 16 58 44.5 3.5 3.5 KKY-0044002N906 KKY-0044001F905 TBE-0044003T111
45 60 10 11 14 58 45.5 3.5 3.5 KKY-0045001N906 TBE-0045001T111
45 60 12 13 16 58 45.5 3.5 3.5 KKY-0045003N906 TBE-0045007T111
45 61 12 13 16 59 45.5 3.5 3.5 KY -45 KY-45F TE-KY-45
47 63 12 13 16 61 47.5 3.5 3.5 KY -47 TE-KY-47
50 65 10 11 14 63 50.5 3.5 3.5 KKY-0050005N906 TBE-0050010T111
50 66 12 13 16 64 50.5 3.5 3.5 KY -50 KY-50F KY-50N TE-KY-50
50 70 12 13 16 68 50.5 3.5 3.5 KKY-0050001N906 TBE-0050001T111
53 69 12 13 16 67 53.6 3.5 3.5 KY -53 TE-KY-53
54 70 12 13 16 68 54.6 3.5 3.5 KKY-0054001N906 TE-Packing instruction code
55 71 12 13 16 69 55.6 3.5 3.5 KY -55 KY-55F 　 TE-KY-55 　
55 72 12 13 16 70 55.6 3.5 3.5 KKY-0055005N906 TE-Packing instruction code
55 75 12 13 16 73 55.6 3.5 3.5 KKY-0055001N906 TBE-0055003T111
55 80 15 16 19 78 55.6 4 4 KKY-0055003N906 TE-Packing instruction code
56 72 12 13 16 70 56.6 3.5 3.5 KY -56 KY-56F TE-KY-56
60 76 12 13 16 74 60.6 3.5 3.5 KY -60 KY-60F 　 TE-KY-60 　
60 80 12 13 16 78 60.6 3.5 3.5 KKY-0060002N906 TBE-0060008T111
63 79 12 13 16 77 63.6 3.5 3.5 KY -63 KY-63F TE-KY-63
64 80 12 13 16 78 64.6 3.5 3.5 KY -64 KY-64F TE-KY-64
65 81 12 13 16 79 65.6 3.5 3.5 KY -65 KY-65F TE-KY-65
67 87 15 16 19 85 67.6 4 4 KY -67 KY-67F KY-67N TE-KY-67
70 90 12 13 16 88 70.6 4 4 KKY-0070001N906 TE-KY-70
70 90 15 16 19 88 70.6 4 4 KY -70 KY-70F TE-KY-70
71 91 15 16 19 89 71.6 4 4 KY -71 KY-71F TE-KY-71
75 95 12 13 16 93 75.6 4 4 KKY-0075001N906 TE-KY-75
75 95 15 16 19 93 75.6 4 4 KY -75 KY-75F TE-KY-75
80 100 12 13 16 98 80.6 4 4 KKY-0080002N906 TE-KY-80
80 100 15 16 19 98 80.6 4 4 KY -80 KY-80F TE-KY-80
85 105 12 13 16 103 85.6 4 4 KKY-0085002N906 TE-KY-85
85 105 15 16 19 103 85.6 4 4 KY -85 KY-85F KY-85N TE-KY-85
90 110 12 13 16 108 90.6 4 4 KKY-0090001N906 TE-KY-90
90 110 15 16 19 108 90.6 4 4 KY -90 KY-90F TE-KY-90
92 112 15 16 19 110 92.6 4 4 KY -92 KY-92F TE-KY-92
95 115 15 16 19 113 95.6 4 4 KY -95 TE-KY-95
100 120 15 16 19 118 100.6 4 4 KY -100 KY-100F KY-100N TE-KY-100
100 125 15 16 19 123 100.6 4 4 KKY-0100005N906 TBE-0100004T111
105 125 15 16 19 123 105.6 4 4 KY -105 KY-105F TE-KY-105
106 126 15 16 19 124 106.6 4 4 KY -106 TE-KY-106
110 130 15 16 19 128 110.6 4 4 KY -110 KY-110F TE-KY-110
112 132 15 16 19 130 112.6 4 4 KY -112 KY-112F TE-KY-112
115 135 15 16 19 133 115.6 4 4 KKY-0115001N906 TBE-0115003T111
118 138 15 16 19 136 118.6 4 4 KY -118 TE-KY-118
120 140 15 16 19 138 120.6 4 4 KY -120 KY-120F TE-KY-120
125 150 19 21 24 147 125.7 5 5 KY -125 KY-125F TE-KY-125
130 150 15 16 19 147 130.7 5 5 KKY-0130001N906 TBE-0130007T111
130 155 19 21 24 152 130.7 5 5 KY -130 KY-130F TE-KY-130
132 157 19 21 24 154 132.7 5 5 KY -132 TE-KY-132
135 155 16 17 20 152 135.7 5 5 KKY-0135001N906 TE-Packing instruction code
135 160 15.7 17 20 157 135.7 5 5 KY -135A KY-135AF TE-KY-135
135 160 19 21 24 157 135.7 5 5 KY -135 KY-135F TE-KY-135
140 160 15 16 19 157 140.7 5 5 KKY-0140001N906 TBE-0140001T111
140 165 19 21 24 162 140.7 5 5 KY -140 KY-140F TE-KY-140
145 170 19 21 24 167 145.7 5 5 KY -145 TE-KY-145
150 175 19 21 24 172 150.7 5 5 KY -150 TE-KY-150
155 180 15.7 17 20 177 155.7 5 5 KY -155A KY-155AF TE-KY-155
155 180 19 21 24 177 155.7 5 5 KY -155 KY -155F TE-KY-155
160 185 19 21 24 182 160.7 5 5 KY -160 KY -160F KY -160N TE-KY-160
165 190 19 21 24 187 165.7 5 5 KY -165 TE-KY-165
170 195 19 21 24 192 170.7 5 5 KY -170 TE-KY-170
175 200 15.7 17 20 197 175.7 5 5 KY -175A KY -175AF TE-KY-175
175 200 19 21 24 197 175.7 5 5 KY -175 KY -175F TE-KY-175
180 205 19 21 24 202 180.7 5 5 KY -180 KY -180F TE-KY-180
190 215 19 21 24 212 190.8 5 5 KY -190 KY -190F TE-KY-190
195 220 19 21 24 217 195.8 5 5 KKY-0195002N906 TBE-0195003T111
199 224 15.7 17 20 221 199.8 5 5 KY -199A KY -199AF TE-KY-199
199 224 19 21 24 221 199.8 5 5 KY -199 KY -199F TE-KY-199
200 225 19 21 24 222 200.8 5 5 KY -200 KY -200F TE-KY-200
205 230 19 21 24 227 205.8 5 5 KKY-0205001N906 TBE-0205002T111
210 235 18 20 23 232 210.8 5 5 KKY-0210002N906 TBE-0210005T111
210 235 19 21 24 232 210.8 5 5 KKY-0210001N906 TBE-0210005T111
212 237 19 21 24 234 212.8 5 5 KY -212 TE-KY-212
215 240 19 21 24 237 215.8 5 5 KKY-0215003N906 TBE-0215001T111
220 250 18 20 23 247 220.8 5 5 KKY-0220001N906 TBE-0220004T111
224 249 19 21 24 246 224.8 5 5 KY -224 TE-KY-224
225 250 18 20 23 247 225.8 5 5 KKY-0225001N906 TE-KY-225
225 250 19 21 24 247 225.8 5 5 KY -225 KY -225F TE-KY-225
230 255 19 21 24 252 230.8 5 5 KKY-0230001N906 TBE-0230005T111
235 260 19 21 24 257 235.8 5 5 KKY-0235001N906 TBE-0235003T111
236 261 19 21 24 258 236.8 5 5 KY -236 KY -236F TE-KY-236
240 265 19 21 24 262 240.8 5 5 KKY-0240003N906 TBE-0240001T111
245 270 19 21 24 267 245.8 5 5 KKY-0245001N906 TBE-0245002T111
250 275 19 21 24 272 250.8 5 5 KY -250 KY -250F TE-KY-250
250 280 22 24 27 277 250.8 6 6 KKY-0250002N906 KKY-0250004F907 TBE-0250003T111
255 280 19 21 24 277 255.8 6 6 KKY-0255003N906 KKY-0255005F907 TBE-0255001T111
260 290 22 24 27 287 260.8 6 6 KKY-0260001N906 TBE-0260001T111
265 297 24 26 29 294 265.8 6 6 KY -265 KY-265F TE-KY-265
270 300 18 20 23 297 270.8 6 6 KKY-0270002N906 TE-KY-270
270 300 22 24 27 297 270.8 6 6 KKY-0270001N906 TE-KY-270
270 300 24 26 29 297 270.8 6 6 KY -270 KY-270F TE-KY-270
275 300 19 21 24 297 275.8 6 6 KKY-0275001N906 TBE-0275002T111
280 310 22 24 27 307 280.8 6 6 KKY-0280001N906 TBE-0280001T111
280 312 24 26 29 309 280.8 6 6 KY -280 TE-KY-280
283 315 24 26 29 312 283.8 6 6 KKY-0283002N906 TBE-0283001T111
285 315 22 24 27 312 285.8 6 6 KKY-0285002N906 TBE-0285002T111
290 320 18 20 23 317 290.8 6 6 KKY-0290002N906 TBE-0290003T111
290 320 22 24 27 317 290.8 6 6 KKY-0290001N906 TBE-0290003T111
300 332 24 26 29 329 300.8 6 6 KY -300 TE-KY-300
310 340 22 24 27 337 311 6 6 KKY-0310001N906 TBE-0310002T111
315 347 24 26 29 344 316 6 6 KY -315 TE-KY-315
323 355 24 26 29 352 324 6 6 KKY-0323001N906 TBE-0323001T111
330 360 22 24 27 357 331 6 6 KKY-0330001N906 TBE-0330001T111
335 367 24 26 29 364 336 6 6 KY -335 TE-KY-335
340 370 22 24 27 367 341 6 6 KKY-0340002N906 TBE-0340002T111
340 372 24 26 29 369 341 6 6 KKY-0340001N906 TE-Packing instruction code
348 380 24 26 29 377 349 6 6 KKY-0348002N906 TBE-0348001T111
355 387 24 26 29 384 356 6 6 KY -355 KY-355F TE-KY-355
360 392 24 26 29 389 361 6 6 KKY-0360001N906 TBE-0360003T111
365 395 22 24 27 392 366 6 6 KKY-0365001N906 TBE-0365001T111
368 400 24 26 29 397 369 6 6 KY -368 TE-KY-368
375 407 24 26 29 404 376 6 6 KY -375 KY-375F TE-KY-375
388 420 24 26 29 417 389 6 6 KKY-0388001N906 TBE-0388001T111
400 432 24 26 29 429 401 6 6 KY -400 TE-KY-400
415 450 25 27 30 447 416 6 6 KKY-0415001N906 TBE-0415001T111
420 455 25 27 30 452 421 6 6 KKY-0420001N906 TE-Packing instruction code
425 457 24 26 29 454 426 6 6 KY -425 TE-KY-425
450 482 24 26 29 479 451 6 6 KY -450 TE-KY-450
475 507 24 26 29 504 476 6 6 KY -475 TE-KY-475
480 515 25 27 30 512 481 6 6 KKY-0480001N906 TBE-0480002T111
500 532 24 26 29 529 501 6 6 KY -500 TE-KY-500
505 545 30 33 37 542 506 8 8 KKY-0505001N906 TBE-0505002T111
510 542 24 26 29 539 511 6 6 KKY-0510001N906 TBE-0510001T111
510 550 30 33 37 546 511 8 8 KKY-0510002N906 TBE-0510002T111
520 560 30 33 37 556 521 8 8 KKY-0520001N906 TBE-0520001T111
530 570 30 33 37 566 531 8 8 KY -530 TE-KY-530
560 600 30 33 37 596 561 8 8 KY -560 TE-KY-560
570 610 30 33 37 606 571 8 8 KKY-0570001N906 TE-Packing instruction code
580 620 30 33 37 616 581 8 8 KKY-0580001N906 TE-Packing instruction code
600 640 30 33 37 636 601 8 8 KY -600 TE-KY-600
630 670 30 33 37 666 631 8 8 KY -630 TE-KY-630
660 700 30 33 37 696 8 8 KKY-0660001N906
690 730 30 33 37 726 8 8 KKY-0690002N906
700 740 30 33 37 736 8 8 KKY-0700001N906
720 760 30 33 37 756 8 8 KKY-0720001N906
740 780 30 33 37 776 8 8 KKY-0740001N906
780 820 30 33 37 816 8 8 KKY-0780001N906
790 830 30 33 37 826 8 8 KKY-0790001N906
830 870 30 33 37 866 8 8 KKY-0830001N906
900 940 30 33 37 936 8 8 KKY-0900001N906
960 1000 30 33 37 996 8 8 KKY-0960001N906
960 1020 45 48 53 1014 12 12 KKY-0960002N906
1020 1080 45 48 53 1074 12 12 KKY-1020001N906
1090 1150 45 48 53 1144 12 12 KKY-1090001N906
1210 1270 45 48 53 1264 12 12 KKY-1210001N906
1340 1400 45 48 53 1394 12 12 KKY-1340001N906

上一页　　　　　　下一页 　　　　　返回


上海煦韵传动件有限公司 版权所有
电话：021-56304826 56625364 传真：021-56304826
