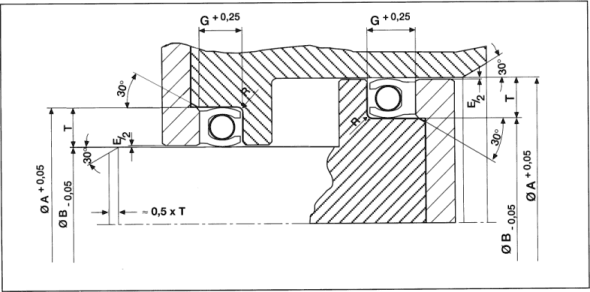

| 聚四氟乙烯U圈（PTFE U-RING)安装推荐尺寸表： |
| |
 DN h9 |
|
| |
| 沟槽直径 |
轴径 |
沟槽宽度 |
|
沟槽直径 |
轴径 |
沟槽宽度 |
|
沟槽直径 |
轴径 |
沟槽宽度 |
| 6 |
3.1 |
2.4 |
|
42 |
35.8 |
4.8 |
|
125 |
112.8 |
9.5 |
| 8 |
5.1 |
2.4 |
|
45 |
38.8 |
4.8 |
|
140 |
127.8 |
9.5 |
| 10 |
7.1 |
2.4 |
|
50 |
40.6 |
7.1 |
|
150 |
137.8 |
9.5 |
| 12 |
9.1 |
2.4 |
|
52 |
42.6 |
7.1 |
|
160 |
147.8 |
9.5 |
| 14 |
9.5 |
3.6 |
|
55 |
45.6 |
7.1 |
|
180 |
167.8 |
9.5 |
| 15 |
10.5 |
3.6 |
|
60 |
50.6 |
7.1 |
|
200 |
187.8 |
9.5 |
| 16 |
11.5 |
3.6 |
|
63 |
53.6 |
7.1 |
|
220 |
207.8 |
9.5 |
| 18 |
13.5 |
3.6 |
|
70 |
60.6 |
7.1 |
|
250 |
237.8 |
9.5 |
| 20 |
15.5 |
3.6 |
|
75 |
65.6 |
7.1 |
|
280 |
267.8 |
9.5 |
| 22 |
17.5 |
3.6 |
|
80 |
70.6 |
7.1 |
|
330 |
287.8 |
9.5 |
| 25 |
18.8 |
4.8 |
|
85 |
75.6 |
7.1 |
|
320 |
307.8 |
9.5 |
| 28 |
21.8 |
4.8 |
|
90 |
80.6 |
7.1 |
|
360 |
347.8 |
9.5 |
| 30 |
23.8 |
4.8 |
|
95 |
85.6 |
7.1 |
|
400 |
387.8 |
9.5 |
| 32 |
25.8 |
4.8 |
|
100 |
90.6 |
7.1 |
|
420 |
407.8 |
9.5 |
| 35 |
28.8 |
4.8 |
|
110 |
100.6 |
7.1 |
|
450 |
437.8 |
9.5 |
| 36 |
29.8 |
4.8 |
|
115 |
105.6 |
7.1 |
|
500 |
487.8 |
9.5 |
| 40 |
33.8 |
4.8 |
|
120 |
110.6 |
7.1 |
|
|
|
|
|
|
| |
另一种选型尺寸： |
|
| 返回 |
| 沟槽直径 |
轴径 |
沟槽宽度 |
|
沟槽直径 |
轴径 |
沟槽宽度 |
|
沟槽直径 |
轴径 |
沟槽宽度 |
| 5.9 |
3.0 |
2.4 |
|
54.4 |
45.0 |
7.1 |
|
142.2 |
130.0 |
9.5 |
| 6.9 |
4.0 |
2.4 |
|
57.4 |
48.0 |
7.1 |
|
147.2 |
135.0 |
9.5 |
| 7.9 |
5.0 |
2.4 |
|
59.4 |
50.0 |
7.1 |
|
152.2 |
140.0 |
9.5 |
| 8.9 |
6.0 |
2.4 |
|
61.4 |
52.0 |
7.1 |
|
162.2 |
150.0 |
9.5 |
| 10.9 |
8.0 |
2.4 |
|
64.4 |
55.0 |
7.1 |
|
172.2 |
160.0 |
9.5 |
| 14.5 |
10.0 |
3.6 |
|
65.4 |
56.0 |
7.1 |
|
182.2 |
170.0 |
9.5 |
| 16.5 |
12.0 |
3.6 |
|
69.4 |
60.0 |
7.1 |
|
192.2 |
180.0 |
9.5 |
| 18.5 |
14.0 |
3.6 |
|
72.4 |
63.0 |
7.1 |
|
202.2 |
190.0 |
9.5 |
| 19.5 |
15.0 |
3.6 |
|
74.4 |
65.0 |
7.1 |
|
212.2 |
200.0 |
9.5 |
| 20.5 |
16.0 |
3.6 |
|
79.4 |
70.0 |
7.1 |
|
222.2 |
210.0 |
9.5 |
| 22.5 |
18.0 |
3.6 |
|
84.4 |
75.0 |
7.1 |
|
232.2 |
220.0 |
9.5 |
| 26.2 |
20.0 |
4.8 |
|
89.4 |
80.0 |
7.1 |
|
242.2 |
230.0 |
9.5 |
| 28.2 |
22.0 |
4.8 |
|
94.4 |
85.0 |
7.1 |
|
252.2 |
240.0 |
9.5 |
| 31.2 |
25.0 |
4.8 |
|
99.4 |
90.0 |
7.1 |
|
262.2 |
250.0 |
9.5 |
| 34.2 |
28.0 |
4.8 |
|
104.4 |
95.0 |
7.1 |
|
292.2 |
280.0 |
9.5 |
| 36.2 |
30.0 |
4.8 |
|
109.4 |
100.0 |
7.1 |
|
312.2 |
300.0 |
9.5 |
| 38.2 |
32.0 |
4.8 |
|
114.4 |
105.0 |
7.1 |
|
332.2 |
320.0 |
9.5 |
| 41.2 |
35.0 |
4.8 |
|
119.4 |
110.0 |
7.1 |
|
362.2 |
350.0 |
9.5 |
| 42.2 |
36.0 |
4.8 |
|
124.4 |
115.0 |
7.1 |
|
372.2 |
360.0 |
9.5 |
| 49.4 |
40.0 |
7.1 |
|
132.2 |
120.0 |
9.5 |
|
412.2 |
400.0 |
9.5 |
| 51.4 |
42.0 |
7.1 |
|
137.2 |
125.0 |
9.5 |
|
|
|
|
|
|
