SAKAGAMI其它密封件：
  *耐磨环密封件(Wear ring)*

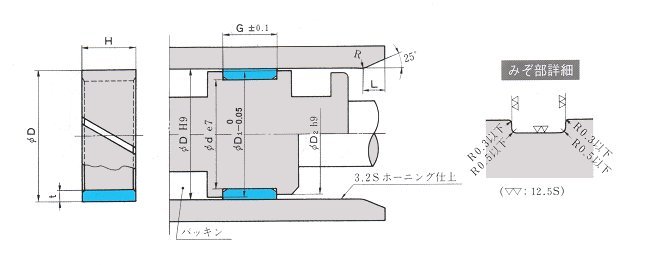

SW-Ring
Wear Ring / Groove Dimensions　(Unit：mm) Instruction code
D d H t G D 1 D 2 Standard(PB 201)
30 26 5 2 5 29.5 29 SW-30
31.5 27.5 8 2 8 31 30 SW-31.5
32 28 8 2 8 31.5 30.5 SW-32
35 31 8 2 8 34.5 33.5 SW-35
35.5 31.5 10 2 10 35 34 SW-35.5
40 36 10 2 10 39.5 38.5 SW-40
45 41 12 2 12 44.5 43.5 SW-45
50 46 12 2 12 49.5 48.5 SW-50
53 47 16 3 16 52.4 51 SW-53
55 49 16 3 16 54.4 53 SW-55
56 50 16 3 16 55.4 54 SW-56
60 54 16 3 16 59.4 58 SW-60
63 57 16 3 16 62.4 61 SW-63
65 59 16 3 16 64.4 63 SW-65
70 64 20 3 20 69.4 68 SW-70
71 65 20 3 20 70.4 69 SW-71
75 69 20 3 20 74.4 73 SW-75
80 74 20 3 20 79.4 78 SW-80
85 79 20 3 20 84.4 83 SW-85
90 84 25 3 25 89.4 88 SW-90
95 89 25 3 25 94.4 93 SW-95
100 94 25 3 25 99.4 98 SW-100
105 99 25 3 25 104.4 103 SW-105
110 104 30 3 30 109.4 108 SW-110
112 106 30 3 30 111.4 110 SW-112
115 109 30 3 30 114.4 113 SW-115
120 114 30 3 30 119.4 118 SW-120
125 119 30 3 30 124.3 123 SW-125
130 124 30 3 30 129.3 128 SW-130
135 129 30 3 30 134.3 133 SW-135
140 134 40 3 40 139.3 138 SW-140
150 144 40 3 40 149.3 148 SW-150
160 154 40 3 40 159.3 158 SW-160
170 164 50 3 50 169.3 168 SW-170
175 169 50 3 50 174.3 173 SW-175
180 174 50 3 50 179.3 178 SW-180
190 184 50 3 50 189.2 188 SW-190
200 194 50 3 50 199.2 198 SW-200
210 204 50 3 50 209.2 208 SW-210
220 214 60 3 60 219.2 218 SW-220
224 218 60 3 60 223.2 222 SW-224
230 224 60 3 60 229.2 228 SW-230
240 234 60 3 60 239.2 238 SW-240
250 244 60 3 60 249.2 248 SW-250
260 252 60 4 60 259.2 257 SW-260
270 262 60 4 60 269.2 267 SW-270
280 272 60 4 60 279.2 277 SW-280
290 282 60 4 60 289.2 287 SW-290
300 292 60 4 60 299.2 297 SW-300
310 302 70 4 70 309 307 SW-310
320 312 70 4 70 319 317 SW-320
340 332 70 4 70 339 337 SW-340
350 342 70 4 70 349 347 SW-350
360 352 70 4 70 359 357 SW-360
375 367 70 4 70 374 372 SW-375
380 372 70 4 70 379 377 SW-380
400 392 70 4 70 399 397 SW-400

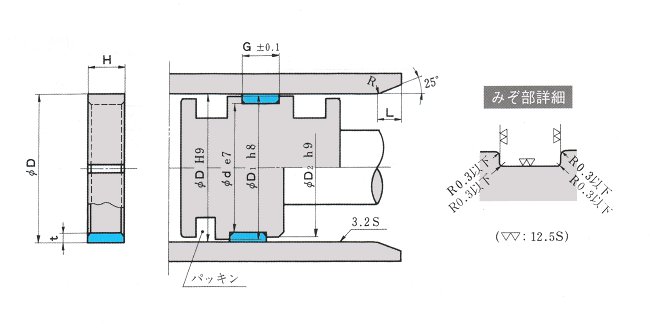

SWA-ring
Wear Ring / Groove Dimensions　(Unit：mm) Instruction code
D d H t G D 1 D 2 Standard(PB 201)
20 17 3 1.5 3 19.5 19 SWA-20
25 22 3 1.5 3 24.5 24 SWA-25
30 27 4 1.5 4 29.5 29 SWA-30
32 29 4 1.5 4 31.5 31 SWA-32
35 32 4 1.5 4 34.5 34 SWA-35
40 36 5 2 5 39.2 39 SWA-40
45 41 5 2 5 44.2 44 SWA-45
50 46 5 2 5 49.2 49 SWA-50
55 51 5 2 5 54.2 54 SWA-55
60 56 6 2 6 59.2 59 SWA-60
63 59 6 2 6 62.2 62 SWA-63
65 61 6 2 6 64.2 64 SWA-65
70 66 6 2 6 69.2 69 SWA-70
75 71 6 2 6 74.2 74 SWA-75
80 76 8 2 8 79.2 79 SWA-80
85 81 8 2 8 84.2 84 SWA-85
90 86 8 2 8 89.2 89 SWA-90
95 91 8 2 8 94.2 94 SWA-95
100 95 10 2.5 10 99 98 SWA-100
120 115 10 2.5 10 119 118 SWA-120
125 120 10 2.5 10 124 123 SWA-125
140 134 15 3 15 139 138 SWA-140
150 144 15 3 15 149 148 SWA-150
160 154 15 3 15 159 158 SWA-160
180 174 15 3 15 179 178 SWA-180
200 194 20 3 20 199 198 SWA-200
250 244 20 3 20 249 248 SWA-250

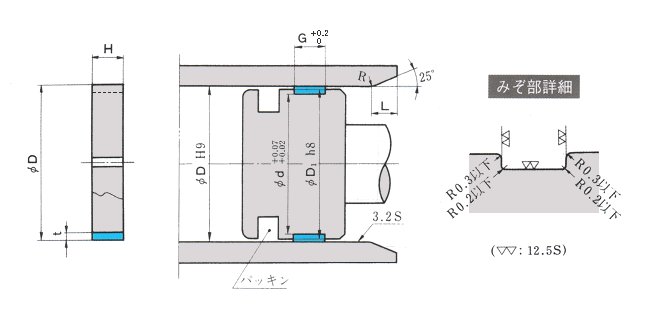

SWB-ring
Wear Ring / Groove Dimensions　(Unit：mm) Instruction code
D d H t G D 1 Standard(PB 251)
20 17 2 1.5 2 19.5 SWB-20
25 22 2 1.5 2 24.5 SWB-25
30 27 2 1.5 2 29.5 SWB-30
32 29 3 1.5 3 31.5 SWB-32
40 37 3 1.5 3 39.5 SWB-40
50 47 4 1.5 4 49.5 SWB-50
63 59 4 2 4 62.4 SWB-63
80 76 5 2 5 79.4 SWB-80
100 96 6 2 6 99.4 SWB-100
125 121 8 2 8 124.3 SWB-125
140 136 8 2 8 139.3 SWB-140
160 156 8 2 8 159.3 SWB-160
180 176 8 2 8 179.3 SWB-180

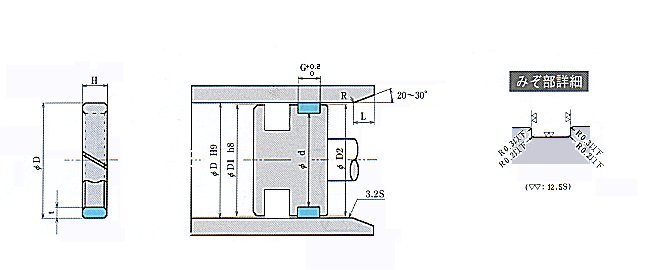

SWO-Ring
Wear Ring / Groove Dimensions　(Unit：mm) Instruction code
D d H t G D 1 D 2 L Standard(PB 271)
32 27 0
-0.05 		5.5 2.5 5.6 31.5 31 2 SWO-32
40 35 5.5 2.5 5.6 39.5 39 2 SWO-40
50 45 5.5 2.5 5.6 49.5 49 2.5 SWO-50
63 58 5.5 2.5 5.6 62.4 62 2.5 SWO-63
80 75 5.5 2.5 5.6 79.4 79 2.5 SWO-80
100 95 5.5 2.5 5.6 99.4 99 2.5 SWO-100
125 120 0
-0.08 		5.5 2.5 5.6 124.3 124 4 SWO-125

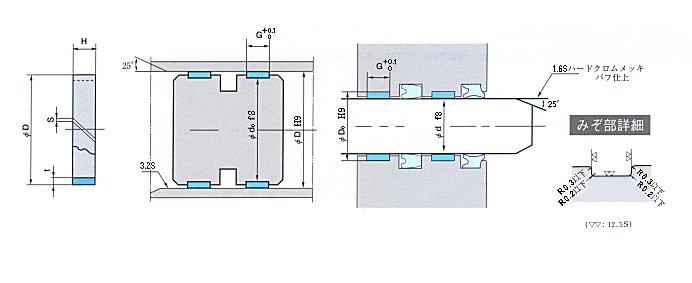

SBT-ring
Wear Ring / Groove Dimensions　(Unit：mm) Instruction code
H t S D d0 d D0 G Standard(PT 141)
8 2 D×0.02
~
D×0.05 		18~ D-4 16~ d＋4 8 SBT-8
10 2 30~ D-4 25~ d＋4 10 SBT-10
15 2.5 50~ D-5 40~ d＋5 15 SBT-15
20 2.5 70~ D-5 60~ d＋5 20 SBT-20
25 2.5 90~ D-5 80~ d＋5 25 SBT-25
30 2.5 125~ D-5 120~ d＋5 30 SBT-30
40 2.5 150~ D-5 140~ d＋5 40 SBT-40

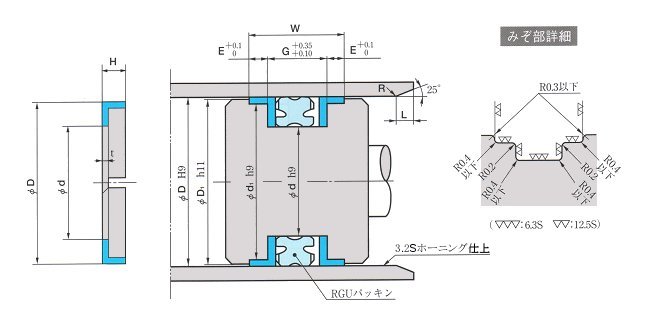

PWL-ring
PWL Bear Ring / Groove Dimensions　(Unit：mm) Instruction code
D d H t D 1 d 1 G E W L Standard(PN 104)
14MPa and less 21MPa and less
40 30 5.5 1.5 39 39.4 37 10 4 18 2.5 PWL-40
45 35 5.5 1.5 44 44.4 42 10 4 18 2.5 PWL-45
50 40 5.5 1.5 49 49.4 47 10 4 18 2.5 PWL-50
55 45 5.5 1.5 54 54.4 52 10 4 18 2.5 PWL-55
60 50 5.5 1.5 59 59.4 57 10 4 18 2.5 PWL-60
63 53 5.5 1.5 62 62.4 60 10 4 18 2.5 PWL-63
65 55 7 2 63.5 64.2 61 11 5 21 2.5 PWL-65
70 60 7 2 68.5 69.2 66 11 5 21 2.5 PWL-70
75 65 7 2 73.5 74.2 71 11 5 21 2.5 PWL-75
80 67 7 2 78.5 79.2 76 12.5 5 22.5 3 PWL-80
85 72 7 2 83.5 84.2 81 12.5 5 22.5 3 PWL-85
90 77 7 2 88.5 89.2 86 12.5 5 22.5 3 PWL-90
100 85 7 2 98.5 99.2 96 14 5 24 4 PWL-100

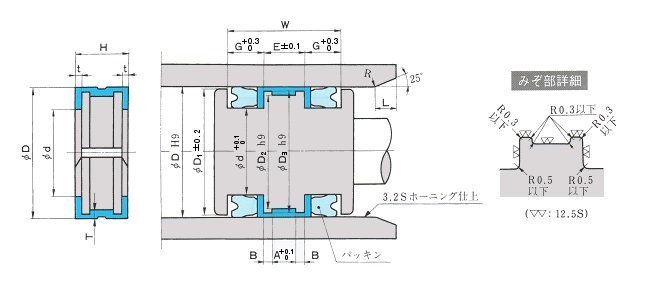

WPB-ring
Wear Ring / Groove Dimensions　(Unit：mm) Instruction code
D d H T t D 1 D 2 D 3 G B A E W Standard(PN 104)
40 30 14 1.95 0 -0.15 1.5 39 36 38 8.5 1.8 7 10.6 27.6 WPB-40A
45 35 15 1.95 1.5 44 41 43 8.5 1.8 8 11.6 28.6 WPB-45A
50 40 15 1.95 1.5 49 46 48 8.5 1.8 8 11.6 28.6 WPB-50A
55 45 16 1.95 2 54 51 53 9 1.8 8 11.6 29.6 WPB-55A
60 50 16 1.95 2 59 56 58 9 1.8 8 11.6 29.6 WPB-60A
63 53 17 1.95 2 62 59 61 9 1.8 9 12.6 30.6 WPB-63A
65 55 17 1.95 2 64 61 63 9 1.8 9 12.6 30.6 WPB-65
70 60 18 1.95 2 69 66 68 9 1.8 10 13.6 31.6 WPB-70
71 60 18 1.95 2 70 67 69 10 1.8 10 13.6 33.6 WPB-71
75 65 20 1.95 2 74 71 73 9 1.8 12 15.6 33.6 WPB-75
80 71 20 1.95 2 79 76 78 9 1.8 12 15.6 33.6 WPB-80
90 80 20 1.95 2 89 86 88 9 1.8 12 15.6 33.6 WPB-90
100 85 26 1.95 2 98 96 98 12 2.8 16 21.6 45.6 WPB-100
110 95 28 1.95 2 108 106 108 12 2.8 18 23.6 47.6 WPB-110
115 100 30 1.95 2 113 111 113 12 2.8 20 25.6 49.6 WPB-115
120 106 30 1.95 2 118 116 118 11.5 2.8 20 25.6 48.6 WPB-120
125 112 32 1.95 2 123 121 123 12 2.8 22 27.6 51.6 WPB-125
140 125 36 2.95 2 138 134 138 12 2.8 26 31.6 55.6 WPB-140
150 136 39 2.95 3 148 144 148 12.5 2.8 27 32.6 57.6 WPB-150
160 145 42 2.95 3 158 154 158 13 2.8 30 35.6 61.6 WPB-160
180 165 46 2.95 3 178 174 178 13 2.8 34 39.6 65.6 WPB-180

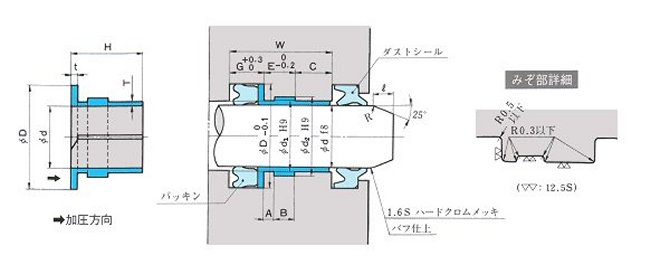

WRB-Ring
Wear Ring / Groove Dimensions　(Unit：mm) Instruction code
d D H T t d 1 d 2 G A B E C W Standard(PN 104)
18 26 21 0.95 0
-0.1 		1 20 22 6.7 3 6 ＋0.15
0 		9 11.5 27.2 WRB-18
20 28 21 0.95 1 22 24 6.7 3 6 9 11.5 27.2 WRB-20
22.4 30 21 0.95 1 24.4 26.4 6.7 3 6 9 11.5 27.2 WRB-22.4
25 33 24 0.95 1 27 29 6.7 3 6 9 14.5 30.2 WRB-25
28 35.5 26 0.95 1 30 32 6.7 3 6 9 16.5 32.2 WRB-28
30 40 28.5 0.95 1.5 32 34 8.5 3.5 10 ＋0.2
0 		13.5 14 36 WRB-30
35 45 33.5 0.95 1.5 37 39 8.5 3.5 10 13.5 19 41 WRB-35
35.5 45 33.5 0.95 1.5 37.5 39.5 8.5 3.5 10 13.5 19 41 WRB-35.5
40 50 37.5 0.95 1.5 42 44 8.5 3.5 10 13.5 23 45 WRB-40
45 56 41.5 0.95 1.5 47 49 9.5 3.5 10 13.5 27 50 WRB-45
50 60 46.5 0.95 1.5 52 54 8.5 3.5 10 13.5 32 54 WRB-50
55 65 51.5 0.95 1.5 57 59 8.5 3.5 10 13.5 37 59 WRB-55
56 66 51.5 0.95 1.5 58 60 8.5 3.5 10 13.5 37 59 WRB-56
60 71 55 0.95 2 62 64 10 3.5 10 13.5 40 63.5 WRB-60
63 73 57 0.95 2 65 67 9 3.5 10 13.5 42 64.5 WRB-63
71 80 62 0.95 2 73 75 9 3.5 10 13.5 47 69.5 WRB-71
80 90 67 0.95 2 82 84 9 3.5 10 13.5 52 74.5 WRB-80
90 105 72 0.95 2 92 94 12 4 10 14 57 83 WRB-90
100 115 77 0.95 2 102 104 12 4 10 14 62 88 WRB-100

*支承环密封件(Low pressure ring)*

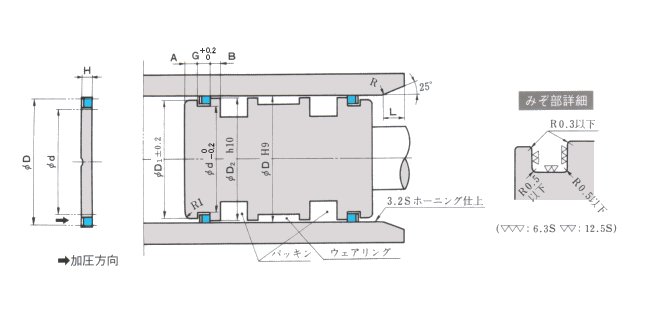

PG-ring
PG Ring / Groove Dimensions　(Unit：mm) Instruction code
D d H G D 1 D 2 A B Standard(PT 111)
30 24 3 3.5 29 29.5 3 3.5 PGRO-30
31.5 25.5 3 3.5 30.5 31 3 3.5 PGRO-31.5
35 29 3 3.5 34 34.5 3 3.5 PGRO-35
35.5 29.5 3 3.5 34.5 35 3 3.5 PGRO-35.5
40 33 3.4 4 39 39.5 3 3.5 PGRO-40
45 38 3.4 4 44 44.5 3 3.5 PGRO-45
50 43 3.4 4 49 49.5 3 3.5 PGRO-50
55 48 3.4 4 54 54.4 3 3.5 PGRO-55
56 49 3.4 4 55 55.4 3 3.5 PGRO-56
60 53 3.4 4 59 59.4 3 3.5 PGRO-60
63 56 3.4 4 62 62.4 3 3.5 PGRO-63
65 58 3.4 4 64 64.4 3 3.5 PGRO-65
70 62 3.8 4.5 69 69.4 4 4 PGRO-70
71 63 3.8 4.5 70 70.4 4 4 PGRO-71
75 67 3.8 4.5 74 74.4 4 4 PGRO-75
80 72 3.8 4.5 79 79.4 4 4 PGRO-80
90 82 3.8 4.5 89 89.4 4 4 PGRO-90
100 90 4.5 5.5 98 99.4 4 5 PGRO-100
110 100 4.5 5.5 108 109.4 4 5 PGRO-110
112 102 4.5 5.5 110 111.4 4 5 PGRO-112
120 110 4.5 5.5 118 119.4 4 5 PGRO-120
125 115 4.5 5.5 123 124.3 4 5 PGRO-125
140 130 4.5 5.5 138 139.3 4 5 PGRO-140
150 138 5.5 6.5 148 149.3 5 6 PGRO-150
160 148 5.5 6.5 158 159.3 5 6 PGRO-160
170 158 5.5 6.5 168 169.3 5 6 PGRO-170
180 168 5.5 6.5 178 179.3 5 6 PGRO-180
200 188 5.5 6.5 198 199.3 5 6 PGRO-200
224 212 5.5 6.5 222 223.2 5 6 PGRO-224
250 238 5.5 6.5 248 249.2 5 6 PGRO-250
